Page 2/2

¡@

¡@

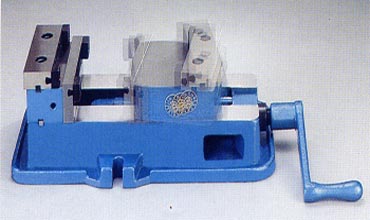

Drill Press Vise  / Model No.: DP-319EB

This vise is made of iron steel FCD 45 and jaw face is hardened to HRC50 degree. Another design on this vise, a ball bearing installed inside is able to prolong its durability.

Item No.: Size Jaw width ( mm ) Jaw opening ( mm ) Jaw height ( mm ) Net Weight
DP-319EB-4" 4¡¨ 105 100 32 5.4kgs
DP-319EB-5" 5¡¨ 127 125 38 7.6kgs
DP-319EB-6" 6¡¨ 152 150 38 10.1kgs

¡@

¡@

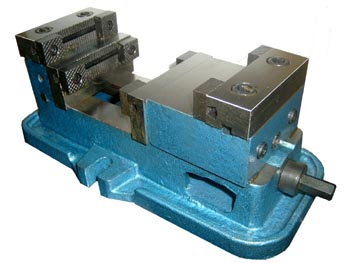

Milling Vise / MV-309E

This patented vise is designed to clamp any shape of work object firm & precisely while milling. This mechanism of vise is able to adjust itself automatically within 7 degree.



¡@

¡@

Item No. Size Jaw width A B C D E Net Weight
MV-309E-4" 4" 100 170 75 24 60 48 20kgs
MV-309E-6" 6" 160 265 125 24 74 56 40kgs
MV-309E-8" 8" 200 420 230 24 86 70 60kgs
