Page 1/2

Milling Vise with a gauge  / Model No.: MV-376A

1) Jaw faces are hardened to HRC 50 degree and the whole body of milling vise is made of FCD 45.

2) A gauge installed into this vise can measure its clamping power. Power range of 4 inch size is from 0 to 5000 kgs and 6 inch size from 0 to 7000 kgs.

3) The user can adjust its clamping power by reading gauge showing its its clamping while operating.

Item No.: Size Jaw width ( mm ) Jaw opening ( mm ) Jaw height ( mm ) Net Weight
MV-376A-4" 4" 100 160 50 11kgs
MV-376A-6" 6" 15 210 50 23kgs

¡@

¡@

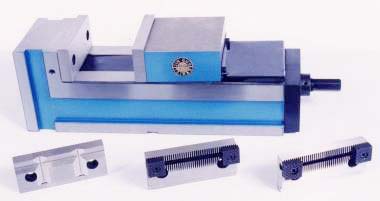

Milling Vise  / Model No.: MV-322S

This patented milling vise is able to keep its balance automatically as it clamps different shapes of work objects.

This vise also can adjust itself within 7 degrees as it clamps any object.

Unit : mm

Model A B C D E F G
MV-322S-130 72 18 190 115 58 20 148
MV-322S-160 93 18 270 135 60 20 166
MV-322S-200 96 18 320 157 70 20 182

¡@

Model H I J K L M N O Net Weigh / Kgs
MV-322S-130 92 18 160 422 21 100 131 155 39
MV-322S-160 109 18 180 535 21 100 169 169 62
MV-322S-200 115 18 200 615 21 100 217 185 89
