Page 2/3

¡@

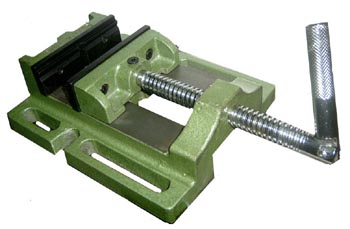

Drill Press Vise  / Model No.: DP-318L

¡@

Item No.: Size Jaw width ( mm ) Jaw opening ( mm ) Jaw height ( mm ) Net Weight
DP-318L-3" 3¡¨ 80 67 32 3.3kgs
DP-318L-4" 4¡¨ 103 96 32 4.3kgs
DP-318L-5" 5¡¨ 130 118 38 8.4kgs
DP-318L-6" 6¡¨ 155 140 38 10.0kgs
DP-318L-8" 8¡¨ 200 200 46 16.0kgs

¡@

¡@

¡@

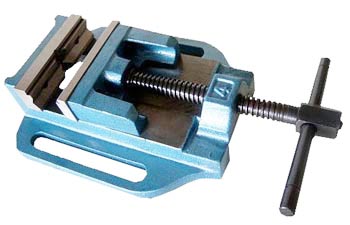

Drill Press Vise  / Model No.: DP-319EB

This vise is made of iron steel FCD 45 and jaw face is hardened to HRC50 degree. Another design on this vise, a ball bearing installed inside is able to prolong its durability.

Item No.: Size Jaw width ( mm ) Jaw opening ( mm ) Jaw height ( mm ) Net Weight
DP-319EB-4" 4¡¨ 105 100 32 5.4kgs
DP-319EB-5" 5¡¨ 127 125 38 7.6kgs
DP-319EB-6" 6¡¨ 152 150 38 10.1kgs

¡@
