Home -- > Index of vises  > index of drill press vises > drill press vise p01

Page 1/3

¡@

Drill Press Vise  / Model No.: DP-310

Item No.: Size Jaw width ( mm ) Jaw opening ( mm ) Jaw height ( mm ) Net Weight
DP-310-50 50 50 55 32 1.5kgs
DP-310-65 65 65 67 32 2.3kgs
DP-310-75 75 75 76 38 3.5kgs
DP-310-100 100 102 100 38 6.6kgs
DP-310-125 125 125 130 38 8.8kgs
DP-310-150 150 150 155 38 10.8kgs

¡@

¡@

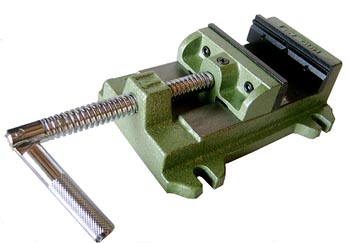

Drill Press Vise  / Model No.: DP-307AL

¡@

Item No.: Size Jaw width ( mm ) Jaw opening ( mm ) Jaw height ( mm ) Net Weight
DP-307AL-3" 3¡¨ 80 80 32 3.1kgs
DP-307AL-4" 4¡¨ 103 98 32 4.1kgs
DP-307AL-5" 5¡¨ 130 128 38 7.7kgs
DP-307AL-6" 6¡¨ 155 143 38 9.3kgs

                               Letterman United Corp. Taiwan     No. 177, Wun-Ya St. Wu-Chi , Taichung 435, Taiwan.

                                TEL : 886-4-26567334  FAX : 886-4-26567342   E-mail : letterman888@seed.net.tw or letterman999@gmail.com

¡@
