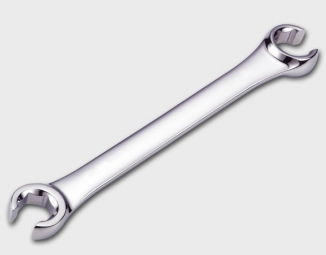

FLARE NUT WRENCH ( type A )
/ Model No.: 38-17
¡@

- Made with chrome vanadium
steel (6140)
- Mirror polish & satin finish
- Ergonomic design
- Suitable for all hydraulic ,
fuel , oil brake , A/C , O2 Sensor , auto tool and
air line work.
|
     |
Metric

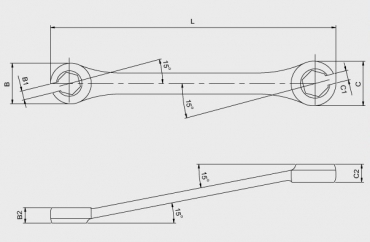

| SIZE |
BxC |
B1xC1 |
B2xC2 |
L(mm) |
| 8x9 |
18x18 |
6x6.5 |
7x7 |
150.0 |
| 8x10 |
18x18 |
6x7 |
7x7 |
150.0 |
| 10x11 |
18x22 |
7x8.5 |
7x9 |
154.0 |
| 10x12 |
18x22 |
7x9 |
7x9 |
154.0 |
| 11x13 |
22x26 |
8.5x10 |
9x11 |
175.0 |
| 12x13 |
22x26 |
9x10 |
9x11 |
175.0 |
| 12x14 |
22x26 |
9x11 |
9x11 |
175.0 |
| 14x15 |
26x26 |
11x12 |
11x11 |
185.0 |
| 14x17 |
26x32 |
11x14 |
11x12.5 |
219.0 |
| 16x17 |
32x32 |
13x14 |
12.5x12.5 |
220.0 |
| 17x19 |
32x32 |
14x15 |
12.5x12.5 |
220.0 |
| 18x19 |
32x32 |
14.5x15 |
12.5x12.5 |
220.0 |
| 19x21 |
32x37 |
15x16 |
12.5x16 |
240.0 |
| 19x22 |
32x37 |
15x17 |
12.5x16 |
240.0 |
| 22x24 |
37x40 |
17x18 |
16x17 |
258.0 |
| 24x27 |
43x47 |
18x20 |
16.5x17.5 |
270.0 |
| 30x32 |
48x52 |
24x26 |
21x23 |
290.0 |
| 32x36 |
51x58 |
26x30 |
23x25 |
290.0 |
|
|
SAE
| SIZE |
BxC |
B1xC1 |
B2xC2 |
L(mm) |
| 5/16″x7/16″ |
18x22 |
6x8.5 |
7x9 |
154.0 |
|
3/8″x7/16″ |
18x22 |
7x8.5 |
7x9 |
154.0 |
| 3/8″x1/2″ |
18x22 |
7x9 |
7x9 |
154.0 |
|
1/2″x9/16″ |
22x26 |
9x11 |
9x11 |
175.0 |
| 9/16″x5/8″ |
26x32 |
11x14 |
11x12.5 |
219.0 |
|
5/8″x11/16″ |
32x32 |
13x14 |
12.5x12.5 |
220.0 |
| 5/8″x3/4″ |
32x32 |
13x15 |
12.5x12.5 |
220.0 |
|
11/16″x3/4″ |
32x32 |
14x15 |
12.5x12.5 |
220.0 |
| 3/4″x13/16″ |
32x37 |
15x16 |
12.5x16 |
240.0 |
|
3/4″x7/8″ |
32x37 |
15x17 |
12.5x16 |
240.0 |
| 13/16″x15/16″ |
37x40 |
15x18 |
16x17 |
258.0 |
|
7/8″x15/16″ |
37x40 |
17x18 |
16x17 |
258.0 |
| 13/16″x1″ |
40x45 |
18x20 |
17x17 |
276.0 |
| 7/8″x1″ |
49x49 |
22x24 |
21x23 |
310.0 |
| 1″x1-1/8″ |
43x47 |
18x20 |
16.5x17.5 |
270.0 |
|
1-1/8″x1-1/4″ |
48x52 |
24x26 |
21x23 |
290.0 |
| 1-3/16″x1-1/2″ |
51x58 |
26x30 |
23x25 |
320.0 |
|
¡@
|
