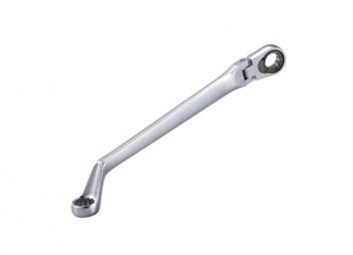

75¢X  FLEXIBLE GEAR-RING WRENCH ( TYPE B )   / Model No.: 38-09

¡@

¡@

  • Made with chrome vanadium steel (6140)
  • Mirror polish & silver satin finished.
  • Flexible gear end.
  • 75¢X off beam at fixed box end.
  • Ergonomic design.
  • Proper fit-lateral force applying system.
  • Deeper accessibility at ring head.
  • Accorded with DIN standard.
proimages/Wrench/icon/degree-110.jpg

Metric

SIZE A*B1 A1*B L(mm)
8 17.5*7.5 8*17.5 190.0
9 17.5*7.5 8*21 191.0
10 17.5*7.6 8*21.5 193.0
11 20*8.0 9*23 214.0
12 20*8.5 9*23.5 215.0
13 23.5*9.5 9*26 220.0
14 23.5*9.5 10*28 235.0
15 26.6*10 10*30 237.0
16 26.6*10 11*30.5 256.0
17 26.6*10 11*33 260.0
18 29.2*11.5 12*32 295.0
19 29.2*11.5 12*35 298.0


SAE

SIZE A*B1 A1*B L(mm)
5/16″ 17.5*7.5 8*17.5 190.0
3/8¡¨ 17.5*7.6 8*21.5 193.0
7/16¡¨ 20*8.0 9*23 214.0
1/2¡¨ 20*8.5 9*23.5 215.0
9/16¡¨ 23.5*9.5 9*26 220.0
5/8¡¨ 26.6*10 11*30.5 256.0
11/16¡¨ 26.6*10 11*33 260.0
3/4¡¨ 29.2*11.5 12*35 298.0
