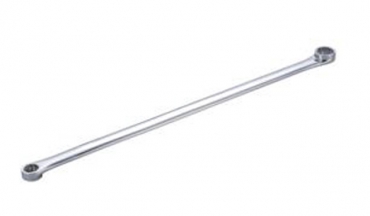

Long Double Ring End Wrench / Model No.: 38-04

¡@

  • Made with chrome vanadium steel (6140)
  • Mirror polish & silver satin finished
  • Flat shaped body.
  • Ergonomic design.
  • 15¢X offset at open-end.
  • More extensive application range open-end.
  • Proper fit-lateral force applying system.
  • Deeper accessibility at ring head.
  • Accorded with DIN standard.

Metric

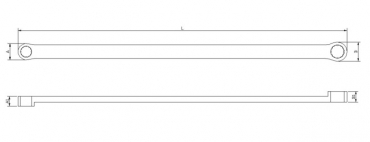

SIZE A B A1 B2 L(mm)
8x10 12.5 15 7.5 8.5 235.0
10x11 15 17 8.5 9.5  291.0
10x12 11.5 17 8.5 9.5  291.0
11x13 17 20.5 9.5 11.5  328.0
12x14 17 20.5 9.5 11.5  328.0
13x15 20.5 23.5 11.5 13  368.0
14x17 20.5 23.5 11.5 13.5  368.0
16x18 23.5 26.5 13 15  407.0
17x19 23.5 26.5 13.5 15  407.0
19x21 26.5 30 15  15.5  415.0
22x24 31.5 34 15.5  18  430.0

¡@

¡@
