HSS Flat Counterbores DIN373
¡@
|
¡@
|
|
HSS Flat Counterbores DIN373
Surface:
Black Finish or
Grey Finish or Tin
Coated
Flute:
3 Flute or 4 Flute
Material:
M2 HSS, M35 HSSCo5% ( HSS-E )
Set
available:
6 pcs set: M3, M4, M5, M6, M8, M10
7 pcs set: M3, M4, M5, M6, M8, M10, M12
8 pcs set: M3, M4, M5, M6, M8, M10, M12, M14
Specification:
we can supply 3 type pilot dia.
Type
A:
|
Item No.
|
Screw Size
|
Head Dia.
|
Pilot Dia.
|
OAL
|
Shank Dia.
|
|
HFC003A
|
M3
|
6mm
|
2.5mm
|
71mm
|
5.0mm
|
|
HFC004A
|
M4
|
8mm
|
3.3mm
|
71mm
|
5.0mm
|
|
HFC005A
|
M5
|
10mm
|
4.2mm
|
80mm
|
8.0mm
|
|
HFC006A
|
M6
|
11mm
|
5.0mm
|
80mm
|
8.0mm
|
|
HFC008A
|
M8
|
15mm
|
6.8mm
|
100mm
|
12.5mm
|
|
HFC010A
|
M10
|
18mm
|
8.5mm
|
100mm
|
12.5mm
|
|
HFC012A
|
M12
|
20mm
|
10.2mm
|
100mm
|
12.5mm
|
¡@
Type
B:
|
Item No.
|
Screw Size
|
Head Dia.
|
Pilot Dia.
|
OAL
|
Shank Dia.
|
|
HFC003B
|
M3
|
6mm
|
3.2mm
|
71mm
|
5.0mm
|
|
HFC004B
|
M4
|
8mm
|
4.3mm
|
71mm
|
5.0mm
|
|
HFC005B
|
M5
|
10mm
|
5.3mm
|
80mm
|
8.0mm
|
|
HFC006B
|
M6
|
11mm
|
6.4mm
|
80mm
|
8.0mm
|
|
HFC008B
|
M8
|
15mm
|
8.4mm
|
100mm
|
12.5mm
|
|
HFC010B
|
M10
|
18mm
|
10.5mm
|
100mm
|
12.5mm
|
|
HFC012B
|
M12
|
20mm
|
13.0mm
|
100mm
|
12.5mm
|
Type
C:
|
Item No.
|
Screw Size
|
Head Dia.
|
Pilot Dia.
|
OAL
|
Shank Dia.
|
|
HFC003C
|
M3
|
6mm
|
3.4mm
|
71mm
|
5.0mm
|
|
HFC004C
|
M4
|
8mm
|
4.5mm
|
71mm
|
5.0mm
|
|
HFC005C
|
M5
|
10mm
|
5.5mm
|
80mm
|
8.0mm
|
|
HFC006C
|
M6
|
11mm
|
6.6mm
|
80mm
|
8.0mm
|
|
HFC008C
|
M8
|
15mm
|
9.0mm
|
100mm
|
12.5mm
|
|
HFC010C
|
M10
|
18mm
|
11.0mm
|
100mm
|
12.5mm
|
|
HFC012C
|
M12
|
20mm
|
14.0mm
|
100mm
|
12.5mm
|
¡@ |
|
¡@
 |
 |

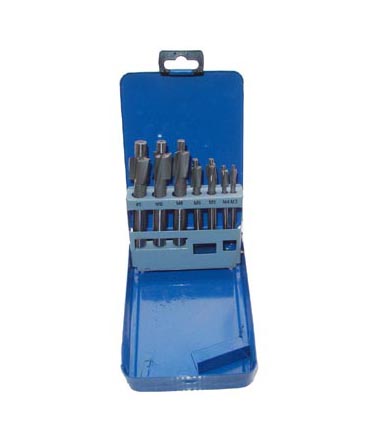

7 pcs HSS Flat Counterbores Set in Metal Case ( DIN373 )
Surface: Black Finish or Grey Finish or
Tin Coated
Flute: 3 Flute
Material:
M2 HSS, M35 HSSCo5% ( HSS-E )
Item No.:
HFC7001S
7 pcs set in Metal Case: M3, M4, M5, M6, M8, M10, M12
Item No.: HFC7001S-B
7 pcs set in Metal Case:#6, #8, #10, 1/4", 5/16", 3/8",
1/2" |

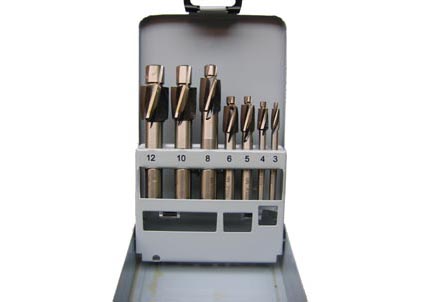

7 pcs HSS
Flat Counterbores Set in Metal Case ( DIN373 )
Surface: Black Finish or Grey Finish or
Tin Coated
Flute: 4 Flute
Material:
M2 HSS, M35 HSSCo5% ( HSS-E )
Item No.: HFC7002S
7
pcs set in Metal Case: M3, M4, M5, M6, M8, M10, M12
Item No.: HFC7002S-B
7
pcs set in Metal Case:#6, #8, #10, 1/4", 5/16", 3/8", 1/2" |
 |
 |

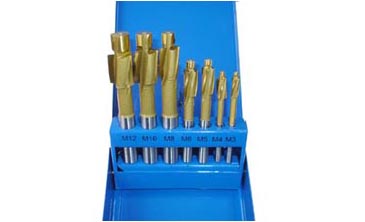

7 pcs HSS Tin Coated Flat Counterbores Set in Metal Case ( DIN373 )
Surface: Tin
Coated
Flute: 4 Flute
Material:
M2 HSS, M35 HSSCo5% ( HSS-E )
Item No.: HFC7003S
7
pcs set in Metal Case: M3, M4, M5, M6, M8, M10, M12
Item No.: HFC7003S-B
7
pcs set in Metal Case:#6, #8, #10, 1/4", 5/16", 3/8", 1/2" |

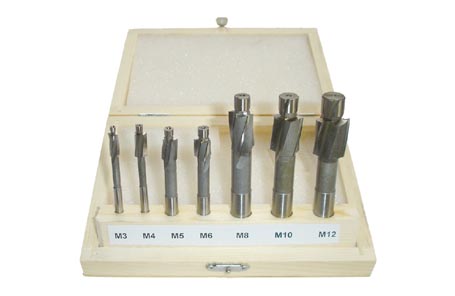

7 pcs HSS
Flat Counterbores Set in Wooden Box
Surface: Black Finish or Grey Finish or
Tin Coated
Flute:
4 Flute
Material: M2 HSS, M35 HSSCo5% ( HSS-E )
Item No.: HFC6001S
6
pcs set in wooden box: M3, M4, M5, M6, M8, M10
Item No.: HFC7004S
7 pcs set in wooden box: M3, M4, M5, M6, M8, M10, M12
Item No.: HFC8001S
8 pcs set in wooden box: M3, M4, M5, M6, M8, M10, M12, M14
Item No.: HFC7004S-B
7 pcs set in wooden box:#6, #8, #10, 1/4", 5/16", 3/8", 1/2"
¡@ |
|
