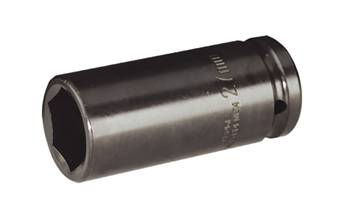

Deep Wall
Impact Socket

1/4" Deep
Impact Socket
|
(mm) |
d1
(mm) |
d2
(mm) |
L
(mm) |
weight/g |
|
4 |
7.5 |
13 |
50 |
22 |
|
4.5 |
8 |
13 |
50 |
22 |
|
5 |
9 |
13 |
50 |
23 |
|
5.5 |
9.5 |
13 |
50 |
23 |
|
6 |
10 |
13 |
50 |
24 |
|
7 |
11.5 |
13 |
50 |
24 |
|
8 |
12.5 |
13 |
50 |
28 |
|
9 |
14 |
13 |
50 |
30 |
|
10 |
15 |
13 |
50 |
33 |
|
11 |
16.5 |
13 |
50 |
35 |
|
12 |
17.5 |
13 |
50 |
38 |
|
13 |
19 |
13 |
50 |
40 |
|
(inch) |
d1
(mm) |
d2
(mm) |
L
(mm) |
weight
/g |
|
3/16 |
9 |
13 |
50 |
22 |
|
1/4 |
10 |
13 |
50 |
24 |
|
5/16 |
12.5 |
13 |
50 |
28 |
|
11/32 |
14 |
13 |
50 |
30 |
|
3/8 |
15 |
13 |
50 |
33 |
|
7/16 |
16.5 |
13 |
50 |
35 |
|
1/2 |
19 |
13 |
50 |
40 |
===========================================================================
3/8" Deep
Impact Socket
|
(mm) |
(inch) |
d1
(mm) |
d2
(mm) |
L
(mm) |
weight /g
|
|
7 |
|
12 |
19 |
63 |
100 |
|
8 |
5/16 |
13 |
19 |
63 |
100 |
|
|
11/32 |
13 |
19 |
63 |
100 |
|
|
3/8 |
15 |
19 |
63 |
100 |
|
9 |
|
15 |
19 |
63 |
100 |
|
10 |
|
16 |
19 |
63 |
100 |
|
11 |
7/16 |
17 |
19 |
63 |
100 |
|
12 |
|
18 |
19 |
63 |
100 |
|
13 |
1/2 |
20 |
20 |
63 |
100 |
|
14 |
9/16 |
21 |
21 |
63 |
120 |
|
15 |
19/32 |
22 |
22 |
63 |
130 |
|
16 |
5/8 |
23 |
22 |
63 |
140 |
|
|
11/16 |
24 |
22 |
63 |
155 |
|
17 |
|
24 |
22 |
63 |
155 |
|
18 |
|
26 |
22 |
63 |
190 |
|
19 |
3/4 |
27 |
22 |
63 |
200 |
|
20 |
25/32 |
28 |
22 |
63 |
210 |
|
|
13/16 |
29 |
22 |
63 |
220 |
|
21 |
|
29 |
22 |
63 |
220 |
|
22 |
7/8 |
31 |
22 |
63 |
240 |
=====================================================================================
1/2 Deep
Impact Socket
|
(mm) |
d1
(mm) |
d2
(mm) |
L
(mm) |
weight
/g
|
|
8 |
14 |
25 |
80 |
160 |
|
9 |
15 |
25 |
80 |
162 |
|
10 |
17 |
25 |
80 |
180 |
|
11 |
18 |
25 |
80 |
180 |
|
12 |
19 |
25 |
80 |
180 |
|
13 |
20 |
25 |
80 |
180 |
|
14 |
22 |
25 |
80 |
200 |
|
15 |
23 |
25 |
80 |
256 |
|
16 |
24 |
28 |
80 |
264 |
|
17 |
26 |
30 |
80 |
260 |
|
18 |
27 |
30 |
80 |
260 |
|
19 |
28 |
30 |
80 |
260 |
|
20 |
29 |
30 |
80 |
260 |
|
21 |
30 |
30 |
80 |
280 |
|
22 |
32 |
30 |
80 |
300 |
|
23 |
33 |
30 |
80 |
300 |
|
24 |
34 |
30 |
80 |
320 |
|
25 |
36 |
30 |
80 |
320 |
|
26 |
37 |
30 |
80 |
320 |
|
27 |
38 |
30 |
80 |
340 |
|
28 |
41 |
30 |
80 |
396 |
|
29 |
41 |
30 |
80 |
372 |
|
30 |
42 |
30 |
80 |
400 |
|
32 |
44 |
30 |
80 |
400 |
|
33 |
45 |
30 |
80 |
435 |
|
34 |
46 |
30 |
80 |
440 |
|
35 |
48 |
30 |
80 |
445 |
|
36 |
50 |
30 |
80 |
460 |
|
38 |
52 |
30 |
80 |
470 |
|
41 |
56 |
30 |
80 |
490 |
|
46 |
62 |
30 |
80 |
520 |
=====================================================================================
3/4" Deep
Impact Socket
|
(mm) |
(inch) |
d1
(mm) |
d2
(mm) |
L
(mm) |
weight /g
|
|
17 |
11/16 |
29 |
38 |
90 |
500 |
|
18 |
|
30 |
38 |
90 |
500 |
|
19 |
3/4 |
32 |
38 |
90 |
500 |
|
20 |
25/32 |
33 |
38 |
90 |
500 |
|
21 |
13/16 |
34 |
38 |
90 |
510 |
|
22 |
7/8 |
36 |
40 |
90 |
530 |
|
23 |
|
37 |
40 |
90 |
540 |
|
24 |
15/16 |
38 |
40 |
90 |
540 |
|
25 |
1 |
40 |
40 |
90 |
570 |
|
26 |
|
41 |
41 |
90 |
620 |
|
27 |
1-1/16 |
42 |
42 |
90 |
690 |
|
28 |
1-1/8 |
44 |
44 |
90 |
720 |
|
29 |
|
45 |
44 |
90 |
750 |
|
30 |
1-3/16 |
46 |
44 |
90 |
760 |
|
32 |
1-1/4 |
48 |
44 |
90 |
790 |
|
33 |
1-5/16 |
50 |
44 |
90 |
820 |
|
34 |
|
51 |
44 |
90 |
850 |
|
35 |
1-3/8 |
52 |
44 |
90 |
880 |
|
36 |
1-7/16 |
53 |
44 |
90 |
880 |
|
38 |
1-1/2 |
56 |
44 |
90 |
900 |
|
40 |
1-9/16 |
58 |
44 |
90 |
960 |
|
41 |
1-5/8 |
60 |
44 |
90 |
1000 |
|
42 |
|
61 |
44 |
90 |
1050 |
|
43 |
1-11/16 |
62 |
44 |
90 |
1100 |
|
45 |
1-3/4 |
65 |
44 |
90 |
1200 |
|
46 |
1-13/16 |
66 |
44 |
90 |
1200 |
|
48 |
1-7/8 |
68 |
44 |
100 |
1300 |
|
50 |
1-15/16 |
71 |
44 |
100 |
1300 |
|
