Airbrush & Mini Air Pump
4/7 Airbrush & Mini
Compressor
Mini
Air Compressor Model No. : MAC-06
Data sheet:
|
Frequency |
50HZ |
60HZ |
|
Voltage |
220V |
230V |
240V |
110V |
120V |
220V |
|
Power |
1/4HP |
1/4HP |
1/4HP |
1/4HP |
1/4HP |
1/4HP |
|
Electric
Current |
1.3A |
1.4A |
1.5A |
3A |
3.5A |
3.5A |
|
Rotational
Speed |
1400 |
1400 |
1400 |
1700 |
1700 |
1700 |
|
Max
Pressure |
3.5BAR
50PSI |
3.5BAR
50PSI |
3.5BAR
50PSI |
3.8BAR
55PSI |
3.8BAR
55PSI |
3.8BAR
55PSI |
|
Air
delivery |
68L/MIN |
68L/MIN |
68L/MIN |
70L/MIN |
70L/MIN |
70L/MIN |
|
Weight |
4.5KG |
4.5KG |
|
Size |
25X12.5X17CM |
25X12.5X17CM |
===============================================================================================
|

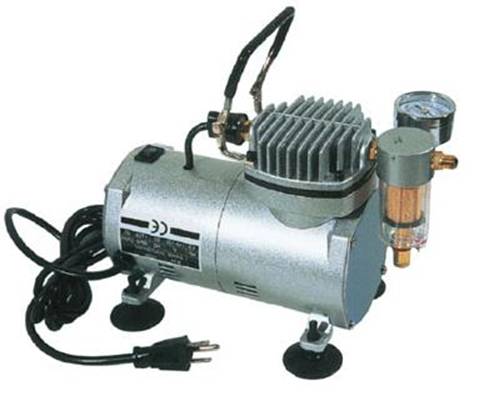

Mini Air Compressor Model No. : MAC-180
Features:
¡PPortable & lightweight.
¡PThermally protected.
¡PLow noise.
¡PAuto stop.
¡PPressure-adjustable.
Specifications:
Type: Single Cylinder Piston Compressor
Power: 1/5 HP
Voltage: 220-240V / 50HZ
110-120V, 220V / 60HZ
Air output per min./litres: 23L/min
Auto stop, start at 30 psi, stop at 60 psi (special pressure available)
Fitting: manometer; pressure regulator; air filter
Connctions: with connection 1/8'' BSP
Net Weight: 3.6KG
Dimension: 245X135X170mm
Electric Cable: 1.9 M |
|
Frequency |
50HZ |
60HZ |
|
Voltage |
220V |
230V |
240V |
110V |
120V |
220V |
|
Power |
1/5HP |
1/5HP |
1/5HP |
1/5HP |
1/5HP |
1/5HP |
|
Electric Current |
1A |
1A |
1A |
2A |
2A |
2A |
|
Rotational Speed |
1450 |
1450 |
1450 |
1750 |
1750 |
1750 |
|
Max Pressure |
2.8BAR
40PSI |
2.8BAR
40PSI |
2.8BAR
40PSI |
3BAR
43PSI |
23BAR
43PSI |
3BAR
43PSI |
|
Air delivery |
23L/MIN |
23L/MIN |
23L/MIN |
25L/MIN |
25L/MIN |
25L/MIN |
|
Pressure Switch Setup1 |
57PSI/4BAR |
|
Pressure Switch Setup2 |
86PSI/6BAR |
|
Pressure Switch Setup3 |
Pressure setup according to the customer need in the range of
3-6 BAR |
|
Weight |
3.6KG |
3.6KG |
|
Size |
24.5X13.5X17CM |
24.5X13.5X17CM |
¡@ |
==========================================================================================================

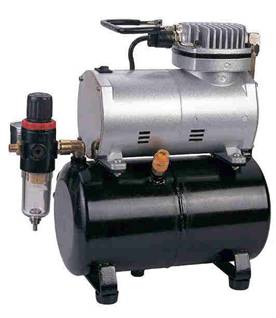

Mini
Air Compressor Model No. : MAC-186
CE Certificated
Characteristic:
1.Portable &
lightweight
2.Low noise
3.Thermally protected.
4.Over pressure protected.
5.Auto stop
6.Pressure-adjustable.
7.Constant pressure and Zero pulsation.
Specifications:
Type: Single
Cylinder Piston Compressor With Air Tank
Power: 1/5 HP
Voltage: 220-240V / 50HZ
110-120V / 60HZ
Maximum pressure: 7bar(100PSI)
Air output per min./litres: 23L/min
Auto stop, start at 30 psi, stop at 60 psi (special pressure available)
Safety valve: release the air pressure automatic when the pressure over 6bar in
the air tank.
Air tank: 3.0L
Fitting: manometer; pressure regulator; air filter; handy carrying handle
Connections: with connection 1/8'' BSP
Weight: 5.2KG
Dimension: 310X130X310mm
|
