Air-powered diaphragm pump can be used with spraying gun for  coating  any kinds painting work, such as wooden or metallic furniture, machine, and tool. short dead-end paint supply. most non-corrosive paints. most proofing materials paints.

@

@

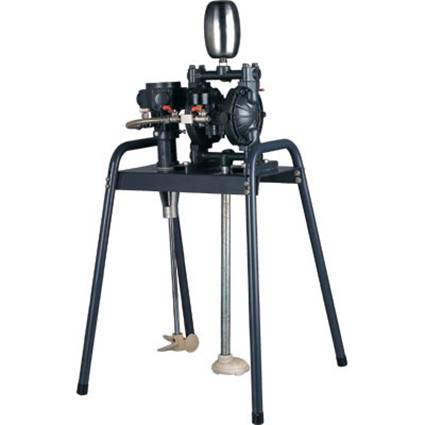

Diaphragm Pump(DP-3)

Description:
Auto-agitating Diaphragm Pump Pump
Press Rate: 1:1
Capacity of paint barrel: 4~200L
Conveying speed: 7.5~10.5L/Min
Air pressure: 0.1~0.5MPa
Max.pump speed: 160Times/Min
Min.pump speed: 80Times/Min
Net Weight: 12.5Kg
Gross weight: 15.0Kg
Ctn spec: 24 x 50 x 61(cm)

============================================================================

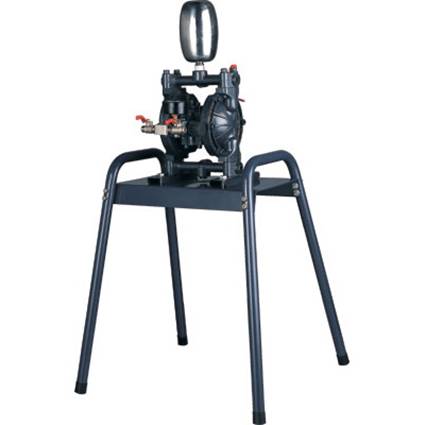

Diaphragm Pump(DP-2)

Description:
Flat Bed Diaphragm Pump Pump
Press Rate: 1:1
Capacity of paint barrel: 4~200L
Conveying speed: 7.5~10.5L/Min
Air pressure:0.1~0.5MPa
Max.pump speed: 160Times/Min
Min.pump speed: 80Times/Min
Net Weight: 8.2Kg
Gross weight: 10.5Kg
Ctn spec: 24 x 50 x 61(cm)

============================================================================

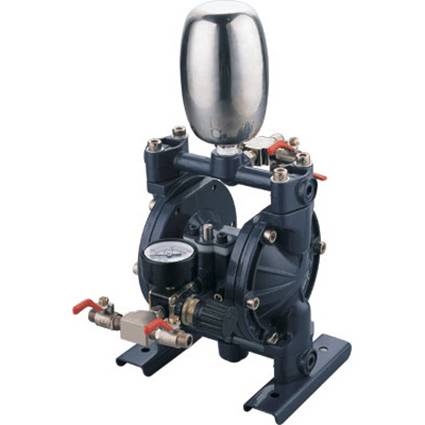

Diaphragm Pump(DP-1)

Description:
Double Diaphragm Pump
Press Rate: 1:1
Capacity of paint barrel: 4~200L
Conveying speed: 7.5~10.5L/Min
Air pressure: 0.1~0.5MPa
Max.pump speed: 160Times/Min
Min.pump speed: 80Times/Min
Net Weight: 4.6Kg
Gross weight: 5.5Kg
Ctn spec:25 x 37 x 52(cm)
