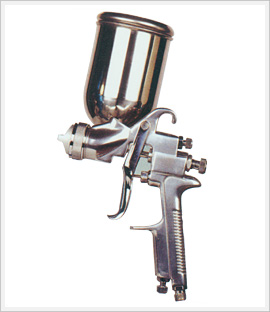

Home -->air tool>  air spray gun > HVLP air spray gun > HVLP air spray gun LM-528G1 series

í@

Model No Type Nozzle Size Fluid Output Pattern Width  Air Consumption Cup Capacity Air Inlet Fluid Inlet Working Pressure Gun Weight
mm  cc/min mm l/min
LM-528G1-10 Gravity 1.0 90 290 250 250 c.c  or        400 c.c. 1/4''NPS 1/4''NPS 15-28psi 488g
LM-528G1-12 1.2 110 300 250
LM-528G1-14 *1.4 150 300 250
LM-528G1-17 1.7 170 310 260
LM-528G1-20 2.0 200 310 260
LM-528G1-24 2.4 245 310 260
LM-528G1-28 2.8 290 310 260
