hss twist
drill bits, DIN338
¡@
hss twist
drill bits, DIN338
| ¡@ |

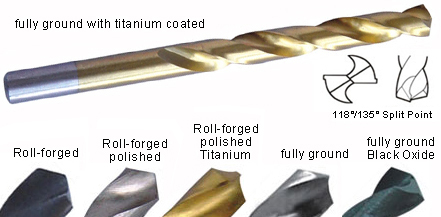

Manufacturing process: Roll Forged or Fully Ground
Material: F4341,4341,9341,M2,M42,M35
Point Angle: 118degree or 118/135 degree( Split Point)
Flute: N or VA (Parabolic)
HSS Titanium Coated Hex Shank Twist Drills
Size: 1.0¡ã6.5mm; 1/16"¡ã1/4", also available
¡@ |
|
*
hot roll-forged flute with special heat treatment
gives additional toughness with increased durability
of the drill bit.
* 118 degree point angle design for general purpose.
* black oxide finish for greater resistance to wear.
* economical high speed steel bit for general
drilling.
* for drilling in steel, cast steel, malleable iron,
sintered metal, non-ferrous metal and plastic.
¡@ |
|
|
*
135 degree split point starts on contact in all
types of metal, no walking or skating
* fully ground body, black oxide for the most
accurate hole dimensions and high concentricity.
* hardened high speed steel body provides additional
safeguard.
* for general using in steel, cast steel, malleable
iron, sintered metal, non-ferrous metal and plastic.
¡@ |
|
|
| ¡@ |
|
dia. |
working length |
overall length |
ORDER NUMBER |
|
1.0 |
12 |
34 |
M101-010 |
|
1.5 |
18 |
40 |
M101-015 |
|
2.0 |
24 |
49 |
M101-020 |
|
2.5 |
30 |
57 |
M101-025 |
|
3.0 |
33 |
61 |
M101-030 |
|
3.2 |
36 |
65 |
M101-032 |
|
3.5 |
39 |
70 |
M101-035 |
|
4.0 |
43 |
75 |
M101-040 |
|
4.2 |
43
|
75
|
M101-042 |
|
4.5 |
47
|
80
|
M101-045 |
|
4.8 |
52
|
86
|
M101-048 |
|
5.0 |
52
|
86
|
M101-050 |
|
5.5 |
57
|
93
|
M101-055 |
|
6.0 |
57
|
93
|
M101-060 |
|
6.5 |
63
|
101
|
M101-065 |
|
7.0 |
69
|
109
|
M101-075 |
|
7.5 |
69
|
109
|
M101-075 |
|
8.0 |
75
|
117
|
M101-080 |
|
8.5 |
75
|
117
|
M101-085 |
|
9.0 |
81
|
125
|
M101-090 |
|
9.5 |
81
|
125
|
M101-095 |
|
10.0 |
87
|
133
|
M101-100 |
|
10.5 |
87
|
133
|
M101-105 |
|
11.0 |
94
|
142
|
M101-110 |
|
11.5 |
94
|
142
|
M101-115 |
|
12.0 |
101
|
151
|
M101-120 |
|
12.5 |
101
|
151
|
M101-125 |
|
13.0 |
101
|
151
|
M101-130 |
|
|
