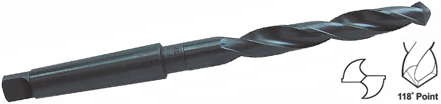

morse taper shank drill bits, general purpose, regular shank
¡@
|
hss morse taper shank drill bits, general purpose, regular shank |
|
|
* 118 degree point angle.
* black oxide finish.
* high performance hss special drill bit with morse
taper shank for high precision drilling of larger bore
diameter.
* for drilling steel, alloyed steel, all common working
steel. |
¡@ |
|
|
|
dia. |
working length |
overall length |
taper shank no. |
ORDER NUMBER |
|
6.0 |
57 |
138 |
1 |
M103-060 |
|
6.5 |
63 |
144 |
1 |
M103-065 |
|
7.0 |
69 |
150 |
1 |
M103-070 |
|
7.5 |
69 |
150 |
1 |
M103-075 |
|
8.0 |
75 |
156 |
1 |
M103-080 |
|
8.5 |
75 |
156 |
1 |
M103-085 |
|
9.0 |
81 |
162 |
1 |
M102-318 |
|
9.5 |
81 |
162 |
1 |
M102-314 |
|
10.0 |
87 |
168 |
1 |
M102-312 |
|
10.5 |
87 |
168 |
1 |
M102-358 |
|
11.0 |
94 |
175 |
1 |
M102-334 |
|
11.5 |
94 |
175 |
1 |
M102-378 |
|
12.0 |
101 |
182 |
1 |
M102-400 |
|
12.5 |
101 |
182 |
1 |
M102-418 |
|
12.75 |
101 |
182 |
1 |
M102-414 |
|
13.0 |
101 |
182 |
1 |
M102-438 |
|
13.5 |
108 |
189 |
1 |
M102-412 |
|
14.0 |
108 |
189 |
1 |
M102-458 |
|
14.5 |
114 |
212 |
2 |
M102-434 |
|
15.0 |
114 |
212 |
2 |
M102-478 |
|
15.5 |
120 |
218 |
2 |
M102-500 |
|
16.0 |
120 |
218 |
2 |
M102-518 |
|
16.5 |
125 |
223 |
2 |
M102-514 |
|
17.0 |
125 |
223 |
2 |
M102-538 |
|
17.5 |
130 |
228 |
2 |
M102-512 |
|
18.0 |
130 |
228 |
2 |
M102-558 |
|
18.5 |
135 |
233 |
2 |
M102-534 |
|
19.0 |
135 |
233 |
2 |
M102-578 |
|
19.5 |
140 |
238 |
2 |
M102-600 |
|
20.0 |
140 |
238 |
2 |
M102-658 |
|
20.5 |
145 |
243 |
2 |
M102-658 |
|
21.0 |
145 |
243 |
2 |
M102-178 |
|
21.5 |
150 |
248 |
2 |
M102-200 |
|
22.0 |
150 |
248 |
2 |
M102-214 |
|
22.5 |
155 |
253 |
2 |
M102-258 |
|
23.0 |
155 |
253 |
2 |
M102-234 |
|
23.5 |
155 |
276 |
3 |
M102-278 |
|
24.0 |
160 |
281 |
3 |
M102-318 |
|
24.5 |
160 |
281 |
3 |
M102-314 |
|
25.0 |
160 |
281 |
3 |
M102-312 |
|
25.5 |
165 |
286 |
3 |
M102-358 |
|
26.0 |
165 |
286 |
3 |
M102-334 |
|
26.5 |
165 |
286 |
3 |
M102-378 |
|
27.0 |
170 |
291 |
3 |
M102-400 |
|
27.5 |
170 |
291 |
3 |
M102-418 |
|
28.0 |
170 |
291 |
3 |
M102-414 |
|
28.5 |
170 |
291 |
3 |
M102-438 |
|
29.0 |
175 |
296 |
3 |
M102-412 |
|
29.5 |
175 |
296 |
3 |
M102-458 |
|
30.0 |
175 |
296 |
3 |
M102-434 |
|
30.5 |
180 |
301 |
3 |
M102-478 |
|
31.0 |
180 |
301 |
3 |
M102-500 |
|
31.5 |
180 |
301 |
3 |
M102-518 |
|
32.0 |
185 |
334 |
4 |
M102-514 |
|
32.5 |
185 |
334 |
4 |
M102-538 |
|
33.0 |
185 |
334 |
4 |
M102-512 |
|
33.5 |
185 |
334 |
4 |
M102-558 |
|
34.0 |
190 |
339 |
4 |
M102-534 |
|
34.5 |
190 |
339 |
4 |
M102-578 |
|
35.0 |
190 |
339 |
4 |
M102-600 |
|
35.5 |
190 |
339 |
4 |
M102-658 |
|
36.0 |
195 |
344 |
4 |
M102-414 |
|
36.5 |
195 |
344 |
4 |
M102-438 |
|
37.0 |
195 |
344 |
4 |
M102-412 |
|
37.5 |
195 |
344 |
4 |
M102-458 |
|
38.0 |
200 |
349 |
4 |
M102-434 |
|
38.5 |
200 |
349 |
4 |
M102-478 |
|
39.0 |
200 |
349 |
4 |
M102-500 |
|
39.5 |
200 |
349 |
4 |
M102-518 |
|
40.0 |
200 |
349 |
4 |
M102-514 |
|
40.5 |
200 |
349 |
4 |
M102-538 |
|
41.0 |
205 |
354 |
4 |
M102-512 |
|
41.5 |
205 |
354 |
4 |
M102-558 |
|
42.0 |
205 |
354 |
4 |
M102-534 |
|
42.5 |
205 |
354 |
4 |
M102-578 |
|
43.0 |
210 |
359 |
4 |
M102-600 |
|
43.5 |
210 |
359 |
4 |
M102-658 |
|
44.0 |
210 |
359 |
4 |
M102-478 |
|
44.5 |
210 |
359 |
4 |
M102-500 |
|
45.0 |
210 |
359 |
4 |
M102-518 |
|
45.5 |
215 |
364 |
4 |
M102-514 |
|
46.0 |
215 |
364 |
4 |
M102-538 |
|
46.5 |
215 |
364 |
4 |
M102-512 |
|
47.0 |
215 |
364 |
4 |
M102-558 |
|
47.5 |
215 |
364 |
4 |
M102-534 |
|
48.0 |
220 |
369 |
4 |
M102-578 |
|
48.5 |
220 |
369 |
4 |
M102-600 |
|
49.0 |
220 |
369 |
4 |
M102-658 |
|
49.5 |
220 |
369 |
4 |
M102-600 |
|
50.0 |
220 |
369 |
4 |
M102-658 |
¡@ |
|
