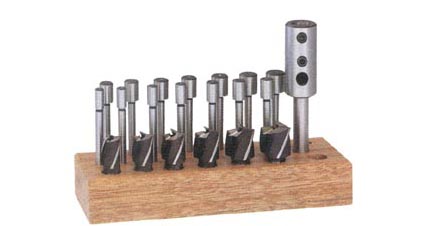

Item No.: HIPC02101S

Packaged:  Wooden Box

Surface:   Black Finish   or   Grey Finish   or   Tin Coated

Material:  M2 HSS
Specification:
Pilots: 4 - 4.5 - 5 - 5.5 - 6 - 6.5 - 7 - 7.5 - 8 - 8.5 - 9 - 9.5 - 10 - 10.5mm x 14 pcs
Counterbores: 8.5 - 9.5 - 10.5 - 11.5 - 13.5 - 16.5mm x 6 pcs
1 pc of Straight Shank   or   MT2 Taper Shank
*Other set available:
We can produce matching according to the requirement of the customer.
　

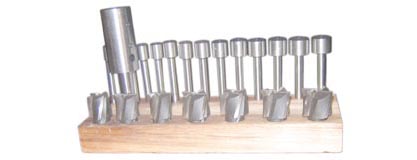

Item No.: HIPC02102S

Packaged:  Wooden Box

Surface:   Black Finish   or   Grey Finish   or   Tin Coated

Material:  M2 HSS

Specification:
Pilots: 7 - 7.5 - 8 - 8.5 - 9 - 9.5 - 10 - 10.5 - 11 - 11.5 - 12 - 13 - 14 - 15mm x 14 pcs
Counterbores: 14.5 - 16.5 - 18.5 - 20.5 - 22.5 - 24.5mm x 6 pcs
1 pc of Straight Shank   or   MT2 Taper Shank

*Other set available:
We can produce matching according to the requirement of the customer.

Item No.: HIPC02201S

Packaged:  Wooden Box

Surface:   Black Finish   or   Grey Finish   or   Tin Coated

Material:  M2 HSS

Specification:
Pilots: 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 mm x 14 pcs
Counterbores: 26 - 28 - 30 - 32 - 33 - 34 - 36 mm x 7 pcs
1 pc of Straight Shank   or   MT2 Taper Shank

*Other set available:
We can produce matching according to the requirement of the customer.

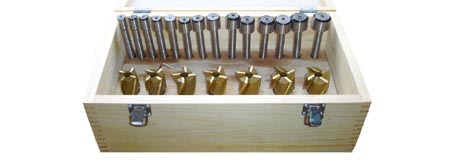

Item No.: HIPC02202S

Packaged:  Wooden Box

Surface:   Titanium Coated

Material:  M2 HSS

Specification:
Pilots: 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 mm x 14 pcs
Counterbores: 26 - 28 - 30 - 32 - 33 - 34 - 36 mm x 7 pcs
1 pc of Straight Shank   or   MT2 Taper Shank

*Other set available:
We can produce matching according to the requirement of the customer.

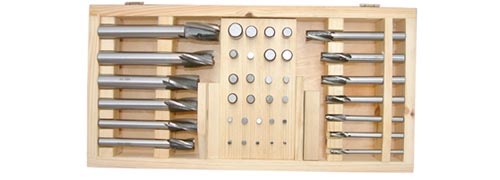

Item No.: HIPC03901S

Packaged:  Wooden Box

Surface:   Black Finish   or   Grey Finish   or   Tin Coated

Material:  M2 HSS

Specification:
Counterbores: 1/4"-5/16"-3/8"-7/16"-1/2"-9/16"-5/8"-11/16"-3/4"-13/16"-7/8"-15/16"-1" x 13pcs
Pilots 26 pcs:
1/8" - 5/32" - 3/16" - 1/4"  with  3/32" shank
3/16" - 7/32" - 1/4" - 9/32" - 5/16"  with  5/32" shank
1/4" - 5/16" - 3/8" - 7/16" - 1/2"  with  3/16" shank
5/16" - 3/8" - 7/16" - 1/2" - 9/16" - 5/8"  with  1/4" shank
3/8" -  7/16" - 1/2" - 9/16" - 5/8" - 3/4"  with  5/16" shank

*Other set available:
We can produce matching according to the requirement of the customer.
