Home --> hand tools >  index of hand tools > flexible head flare nut combination wrench

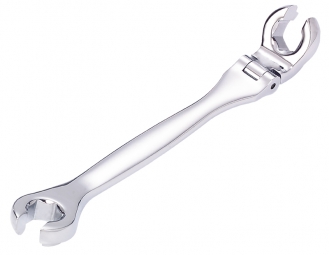

FLEXIBLE HEAD FLARE NUT COMBINATION WRENCH   / Model No.: 38-21

Open Double-Ring Wrench

@

   proimages/Wrench/CM-520A/CM-520A-app01.jpgproimages/Wrench/CM-520A/CM-520A-app02.jpgproimages/Wrench/CM-520A/CM-520A-app03.jpgproimages/Wrench/CM-520A/CM-520A-app04.jpg

@

@

  • Made with chrome vanadium steel (6140)
  • Mirror polish & satin finish
  • Flexible head folds up to 230∘
  • Traditional flare nut wrench and crowfoot function
  • Ergonomic design
  • Suitable for all hydraulic , fuel , oil brake , A/C , O2 Sensor , auto tool and air line work.
proimages/Wrench/icon/degree-110.jpg

Metric

SIZE BxC B1xC1 B2xC2 L(mm)
6 15x15 4.5x4.5 7x7 123.0
7 15x15 5x5 7x7 123.0
8 18x18 6x6 7x7 128.0
9 18x18 6.5x6.5 7x7 128.0
10 18x18 7x7 7x7 128.0
11 22x22 8.5x8.5 9x9 148.0
12 22x22 9x9 9x9 148.0
13 26x26 10x10 11x11 175.0
14 26x26 11x11 11x11 175.0
15 26x26 12x12 11x11 175.0
16 32x32 13x13 13x13 190.0
17 32x32 14x14 13x13 190.0
18 32x32 14.5x14.5 13x13 190.0
19 32x32 15x15 13x13 190.0
21 37x37 16x16 16x16 218.0
22 37x37 17x17 16x16 218.0
24 40x40 18x18 16x16 235.0
27 45x45 20x20 17x17 270.0

SAE

SIZE BxC B1xC1 B2xC2 L(mm)
1/4 15x15 4.5x4.5 7x7 123.0
5/16 18x18 6x6 7x7 128.0
3/8 18x18 7x7 7x7 128.0
7/16 22x22 8.5x8.5 9x9 148.0
1/2 22x22 9x9 9x9 148.0
9/16 26x26 11x11 11x11 175.0
5/8 32x32 13x13 13x13 190.0
11/16 32x32 13x13 13x13 190.0
3/4 32x32 13x13 13x13 190.0
13/16 37x37 16x16 16x16 218.0
7/8 37x37 16x16 16x16 218.0
15/16 40x40 18x18 16x16 235.0
1 45x45 20x20 17x17 270.0
1-1/16 45x45 20x20 17x17 218.0
