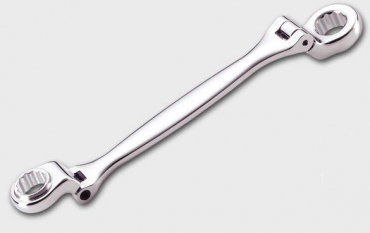

   DOUBLE FLEXIBLE RING WRENCH   / Model No.: 38-19

@

@

   proimages/Wrench/CM-520BB/CM-520BB-app1.jpgproimages/Wrench/CM-520BB/CM-520BB-app.jpg

@

  • Made with chrome vanadium steel (6140)
  • Mirror polish & satin finish
  • Double Flexible head folds up to 230∘
  • Traditional flare nut wrench and crowfoot function
  • Double flexible box end wrench replace traditional ring wrench
  • Ergonomic design
proimages/Wrench/icon/degree-110.jpg

Metric

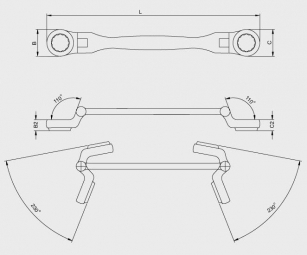

SIZE BxC B1xC1 B2xC2 L(mm)
6x8 15x18  4.5x6  6.7x7  145.0
7x9 15x18  5x6.5  6.7x7  145.0
8x9 18x18  6x6.5  7x7  150.0
8x10 18x18  6x7  7x7  150.0
8x11 18x22  6x8.5  x79  154.0
9x10 18x18  6.5x7  7x9  150.0
9x11 18x22  6.5x8.5  7x9  154.0
10x11 18x22  7x8.5  7x9  154.0
10x12 18x22  7x9  7x9  154.0
11x13 22x26  8.5x10  9x11  175.0
12x13 22x26  9x10  9x11  175.0
12x14 22x26  9x11  9x11  175.0
12x15 22x26  9x12  9x11  175.0
13x14 26x26  10x11  11x11  185.0
13x15 26x26  10x12  11x11  185.0
14x15 26x26  11x12  11x11  185.0
13x17 2x32  10x14  11x12.5  219.0
13x18 26x32  10x14.5  11x12.5  219.0
14x16 26x32  11x13  11x12.5  219.0
14x17 26x32  11x14  11x12.5  219.0
14x18 26x32  11x14.5  11x12.5  219.0
14x19 26x32  11x15  11x12.5  219.0
15x16 26x32  12x13  11x12.5  219.0
15x17 26x32  12x14  11x12.5  219.0
15x19 26x32  12x15  11x12.5  219.0
16x17 32x32  13x14  12.5x12.5  220.0
16x18 32x32  13x14.5  12.5x12.5  220.0
17x18 32x32  14x14.5  12.5x12.5  220.0
17x19 32x32  14x15  12.5x12.5  220.0
18x19 32x32  14.5x15  12.5x12.5  220.0
19x21 32x37  15x16  12.5x16  240.0
19x22 32x37  15x17  12.5x16  240.0
21x24 37x40  15x18  16x17  258.0
22x24 37x40  17x18  16x17  258.0


SAE

SIZE BxC B1xC1 B2xC2 L(mm)
1/4x5/16″ 15x18 4.5x6 6.7x7 145.0
5/16x7/16″ 18x22 6x8.5 7x9 154.0
3/8x7/16″ 18x22 7x8.5 7x9 154.0
3/8″x1/2″ 18x22 7x9 7x9 154.0
1/2x9/16″ 22x26 9x11 9x11 175.0
9/16x5/8″ 26x32 11x14 11x12.5 219.0
5/8x11/16″ 32x32 13x14 12.5x12.5 220.0
5/8″x3/4″ 32x32 13x15 12.5x12.5 220.0
11/16″x3/4 32x32 14x15 12.5x12.5 220.0
3/4″x13/16 32x37 15x16 12.5x16 240.0
3/4″x7/8 32x37 15x17 12.5x16 240.0
13/16″x15/16 37x40 15x18 16x17 258.0
7/8″x15/16 40x40 17x218 16x17 258.0
