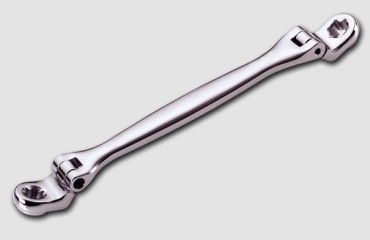

   DOUBLE FLEXIBLE E-TYPE WRENCH / Model No.: 38-16

¡@

¡@

¡@

  • Made with chrome vanadium steel (6140)
  • Mirror polish & satin finish
  • Flexible head folds up to 200º
  • Ergonomic design
  • Replace traditional torx-star wrench & socket
  • Combine use with F-bar, H-bar, T-bar, speed-handle...etc.
proimages/Wrench/icon/degree-110.jpg

Metric

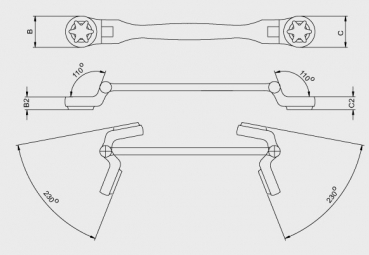

SIZE BxC B2xC2 L(mm)
 E5xE6 15x15 7x7 146.0
 E6xE8 15x15 7x7 146.0
 E7xE8 15x15 7x7 146.0
 E8xE10 15x14 7x7 146.0
 E10xE12 15x19 7x7.5 148.0
 E12xE14 19x23 7.5x9.5 152.0
 E14xE16 23x27 9.5x11.5 177.0
 E14xE18 23x27 9.5x11.5 177.0
 E16xE18 27x27 11.5x11.5 192.0
 E18xE20 27x27 11.5x11.5 192.0
 E20xE22 27x33 11.5x13 220.0
 E20xE24 27x33 11.5x13 220.0
E22xE24 33x33 13x13 224.0
