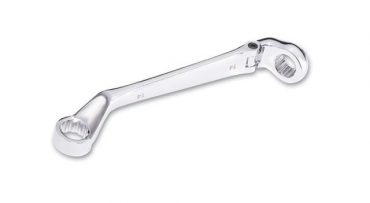

75X  OFF BEAM FLEXIBLE RING BOX END WRENCH   / Model No.: 38-11

  • Made with chrome vanadium steel (6140)
  • Mirror polish & silver satin finished 75X off beam at fixed boxen.
  • Ergonomic design.
  • More extensive application range open-end.
  • Proper fit-lateral force applying system.
  • Deeper accessibility at ring head.
  • Accorded with DIN standard.

proimages/Wrench/icon/degree-110.jpg

Metric

SIZE A*B A2*B2 L(mm)
8 18*17 7.5*8 186.0
9 18*17 7.5*8 186.0
10 18*17 7.5*8 186.0
11 22*19.5 9.2*9 210.0
12 22*19.5 9.2*9 210.0
13 26*23 11.1*10 232.0
14 26*23 11.1*10 232.0
15 26*23 11.1*10 232.0
16 32*26.1 13*11 258.0
17 32*26.1 13*11 258.0
18 33*28.8 13*12 290.0
19 33*28.8 13*12 290.0


SAE

SIZE A*B A1*B2 L(mm)
5/16″ 19*17 7.5*8 186.0
3/8 19*17 7.5*8 186.0
7/16 23*19.5 9.2*9 210.0
1/2 23*19.5 9.2*9 210.0
9/16 27*23.1 11.1*10 232.0
5/8 32*26.1 13*11 258.0
11/16 32*26.1 13*11 258.0
3/4 33*28.8 13*12 290.0
