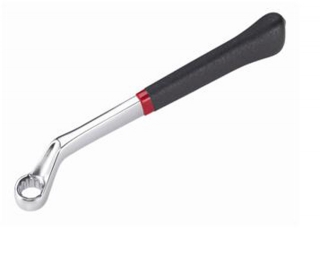

75¢X  OFF BEAM BOX END WRENCH   / Model No.: 38-10

  • Made with chrome vanadium steel (6140)
  • Mirror polish & silver satin finished 75¢X off beam at fixed boxen.
  • Ergonomic design.
  • More extensive application range open-end.
  • Proper fit-lateral force applying system.
  • Deeper accessibility at ring head.
  • Accorded with DIN standard.


Metric

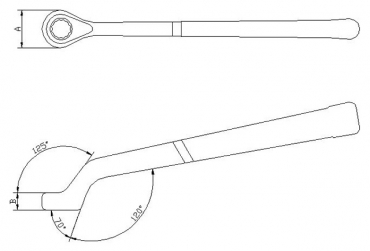

SIZE A B L(mm)
8 17.5  7.5 165.0
9 17.5  7.5 165.0
10 17.5  7.5 165.0
11 17.5  7.5 165.0
12 19.5  8.5 185.0
13 19.5  8.5 185.0
14 23.5  9.5 200.0
15 23.5  9.5 200.0
16 27  10.5 220.0
17 27  10.5 220.0
18 29  12.0 260.0
19 29  12.0 260.0


SAE

SIZE A B L(mm)
5/16″ 17.5 7.5 165.0
3/8¡¨ 17.5 7.5 165.0
7/16¡¨ 17.5 7.5 165.0
1/2¡¨ 19.5 8.5 185.0
9/16¡¨ 19.5 8.5 200.0
5/8¡¨ 23.5 9.5 220.0
11/16¡¨ 23.5 9.5 220.0
3/4¡¨ 23.5 9.5 260.0

¡@

¡@
