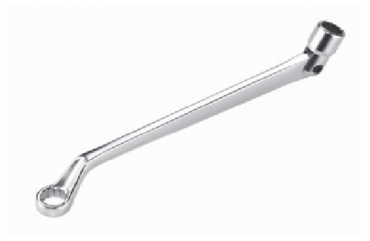

 75X BOX END FLEXIBLE SOCKET WRENCH / Model No.: 38-06

@

@

  • Made with chrome vanadium steel (6140)
  • Mirror polish & silver satin finished
  • 75X off beam at fixed box end.
  • Flexible socket end, can be folded up to 140X.
  • Ergonomic design.
  • Deeper accessibility at ring head.
  • Accorded with DIN standard.

proimages/Wrench/icon/degree-110.jpg

Metric

SIZE A A1 C L(mm)
8  17 13 180.0
9  17  8 13 180.0
10  17  8 16 182.0
11  19.5  9 16 182.0
12  19.5  9 19 205.0
13  23  10 19 205.0
14  23  10 21 222.0
15  23  10 21 222.0
16  26.1  11 24 240.0
17  26.1  11 24 240.0
18  28.8  12 26 280.0
19  28.8  12 26 280.0


SAE

SIZE A A1 C L(mm)
5/16″  17  8 13 180.0
3/8  17  8 16 182.0
7/16  19.5  9 16 182.0
1/2  19.5  9 19 205.0
9/16  23  10 21 222.0
5/8  26.1  11 24 240.0
11/16  26.1  11 24 240.0
3/4  28.8  12 26 280.0

@
