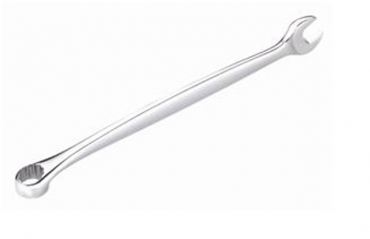

Dolphin Wrench / Model No.: 38-05

¡@

¡@

  • Made with chrome vanadium steel (6140)
  • Mirror polish & silver satin finished
  • Flat shaped body.
  • Ergonomic design.
  • 15¢X offset at open-end.
  • More extensive application range open-end.
  • Proper fit-lateral force applying system.
  • Deeper accessibility at ring head.
  • Accorded with DIN standard.


Metric

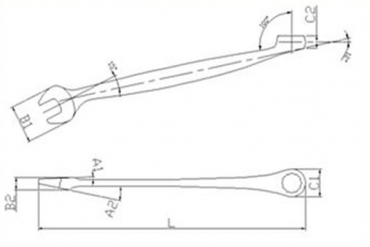

SIZE B1 B2 C1 C2 A1 A2 L(mm)
8 17.5 5 13 6.5 2¢X 15¢X 141.0
9 19.5 6 14 6.8 2¢X 15¢X 146.0
10 21.5 7 16 7 2¢X 15¢X 153.0
11 23.5 8 17 8 2¢X 14¢X 162.0
12 25.5 9 18 8 2¢X 14¢X 167.0
13 27.5 10 20 9 2¢X 14¢X 176.0
14 29.5 11 21 9.5 2¢X 13¢X 186.0
15 31.5 12 23 10 2¢X 13¢X 190.0
16 33.5 13 24 10.5 2¢X 13¢X 205.0
17 35.5 14 26 11 2¢X 12¢X 218.0
18 37.5 15 27 11.5 2¢X 12¢X 228.0
19 39.5 16 28 12 2¢X 12¢X 238.0
20 43 16 31.5 13 2¢X 11¢X 270.0
21 43 16 31.5 13 2¢X 11¢X 270.0
22 45 16 33 14 2¢X 11¢X 292.0
23 45 16 33 14 2¢X 10¢X 292.0
24 49 16 36 15 2¢X 10¢X 304.0
25 49 16 36 15 2¢X 10¢X 304.0


SAE

SIZE B1 B2 C1 C2 A1 A2 L(mm)
5/16″ 17.5 5 13 6.5 2¢X 15¢X 141.0
3/8¡¨ 21.5 7 16 7 2¢X 15¢X 1530.
7/16¡¨ 23.5 8 17 8 2¢X 14¢X 162.0
1/2¡¨ 27.5 10 20 9 2¢X 14¢X 176.0
9/16¡¨ 29.5 11 21 9.5 2¢X 13¢X 186.0
5/8¡¨ 33.5 13 24 10.5 2¢X 13¢X 205.0
11/16¡¨ 35.5 14 26 11 2¢X 12¢X 218.0
3/4¡¨ 39.5 16 28 12 2¢X 12¢X 238.0
13/16″ 43 16 31.5 13 2¢X 11¢X 270.0
7/8″ 45 16 33 14 2¢X 11¢X 292.0
15/16″ 49 16 36 15 2¢X 10¢X 304.0

¡@
